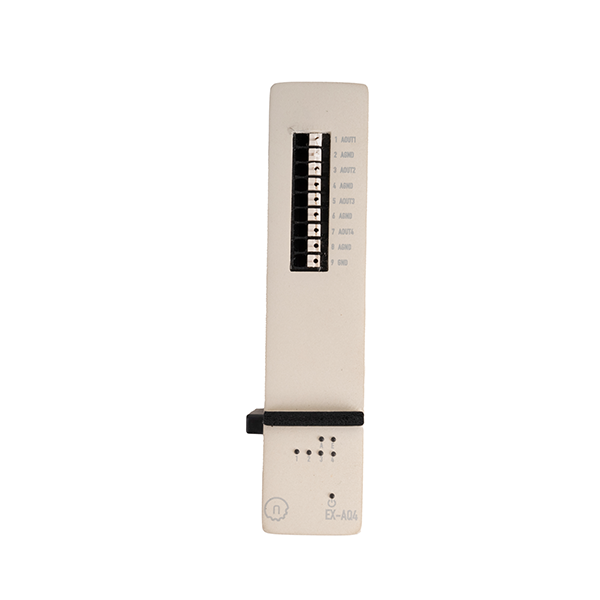

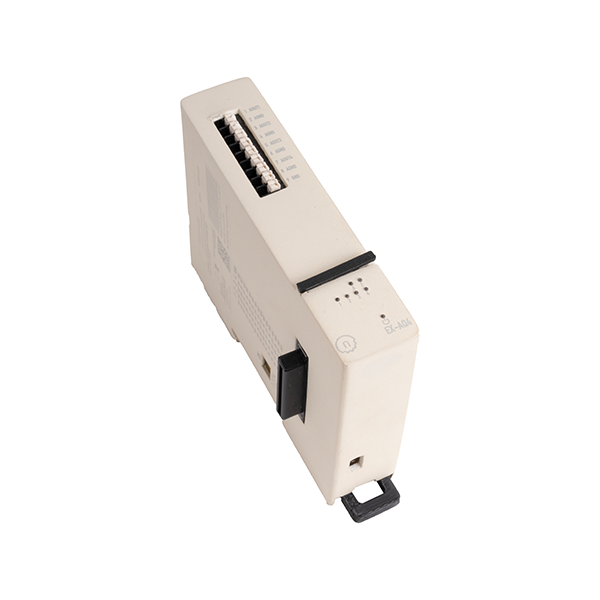

The NORVI X-AQ4 is a high-performance 4-channel analog output expansion module for the NORVI X Modular Controller, enabling precise control of industrial actuators, VFDs, and process valves.
Featuring an onboard STM32 microcontroller for dedicated 12-bit DAC management, the module offloads timing-critical signal generation from the main CPU to ensure superior stability. It provides four independent outputs configurable for 0-10V or 4-20mA signals, each protected by active filtering and TVS diodes for maximum noise immunity and surge protection in harsh industrial environments.
Product Features
4-Channel Analog Output
12-bit DAC Resolution
0-10V DC / 4-20mA Support
I²C Expansion Bus

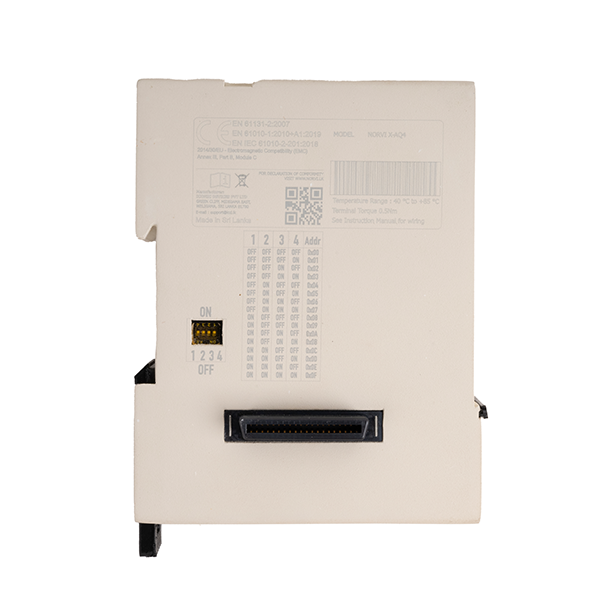

DIP Switch Addressing
Status LED indicators for each input channel
Plug-and-play connection to NORVI X CPU module via expansion bus
