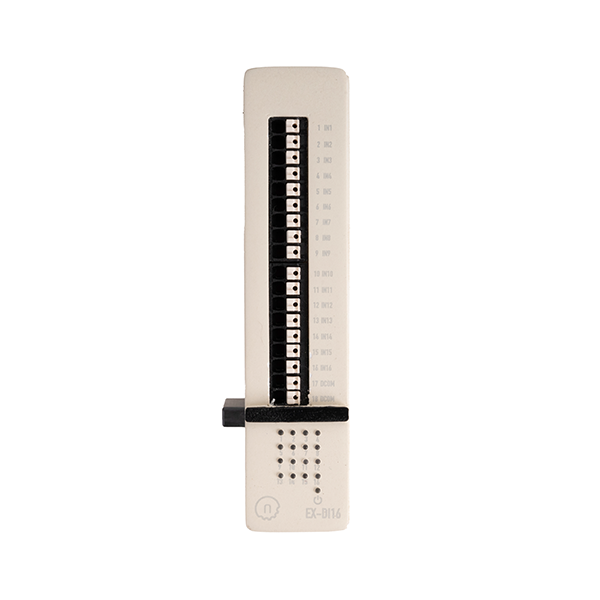

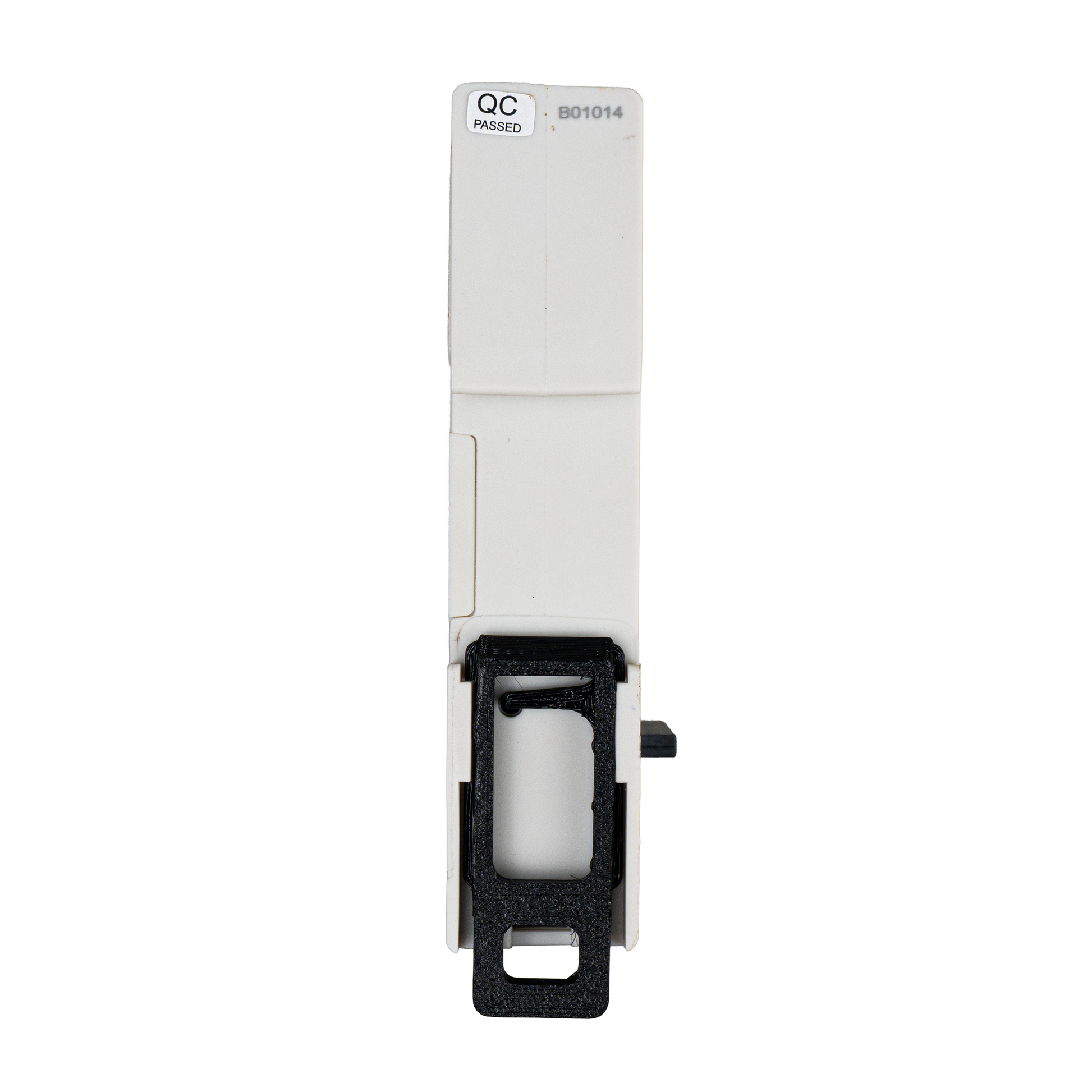

NORVI X-DI16
The NORVI X-DI16 is a 16-channel digital input expansion module for the NORVI X Modular Controller. It provides protected 24 V DC digital inputs for industrial switches, sensors, and logic-level signals.
At its core, the module integrates a PCA9555 I²C port expander, allowing the NORVI X CPU to read input states efficiently via the internal expansion bus. With four selectable I²C addresses, up to four DI16 modules can be connected on the same bus, providing a total of 64 digital inputs per controller.
Designed for modular scalability and DIN-rail mounting, the NORVI X-DI16 delivers reliable, noise-immune, and space-efficient 16-channel input expansion, making it ideal for industrial automation and control applications.
Product Features
- 16 × Optically isolated 24 V DC digital inputs
- Bi-directional optocouplers – support both sourcing (PNP) and sinking (NPN) inputs
- One common terminal for all sixteen inputs

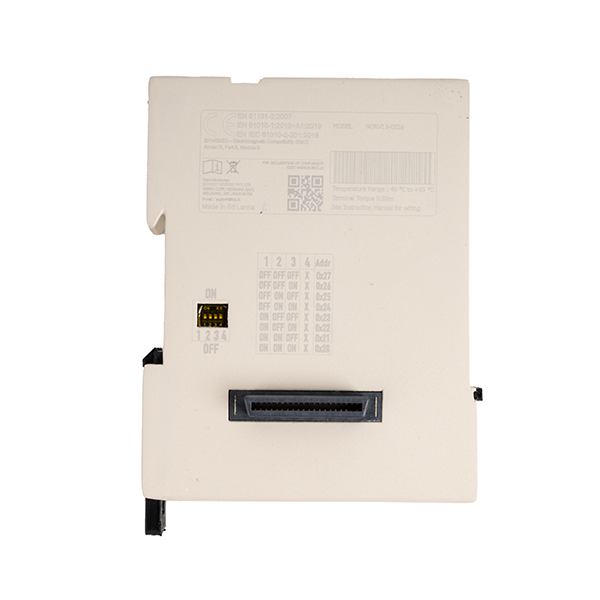

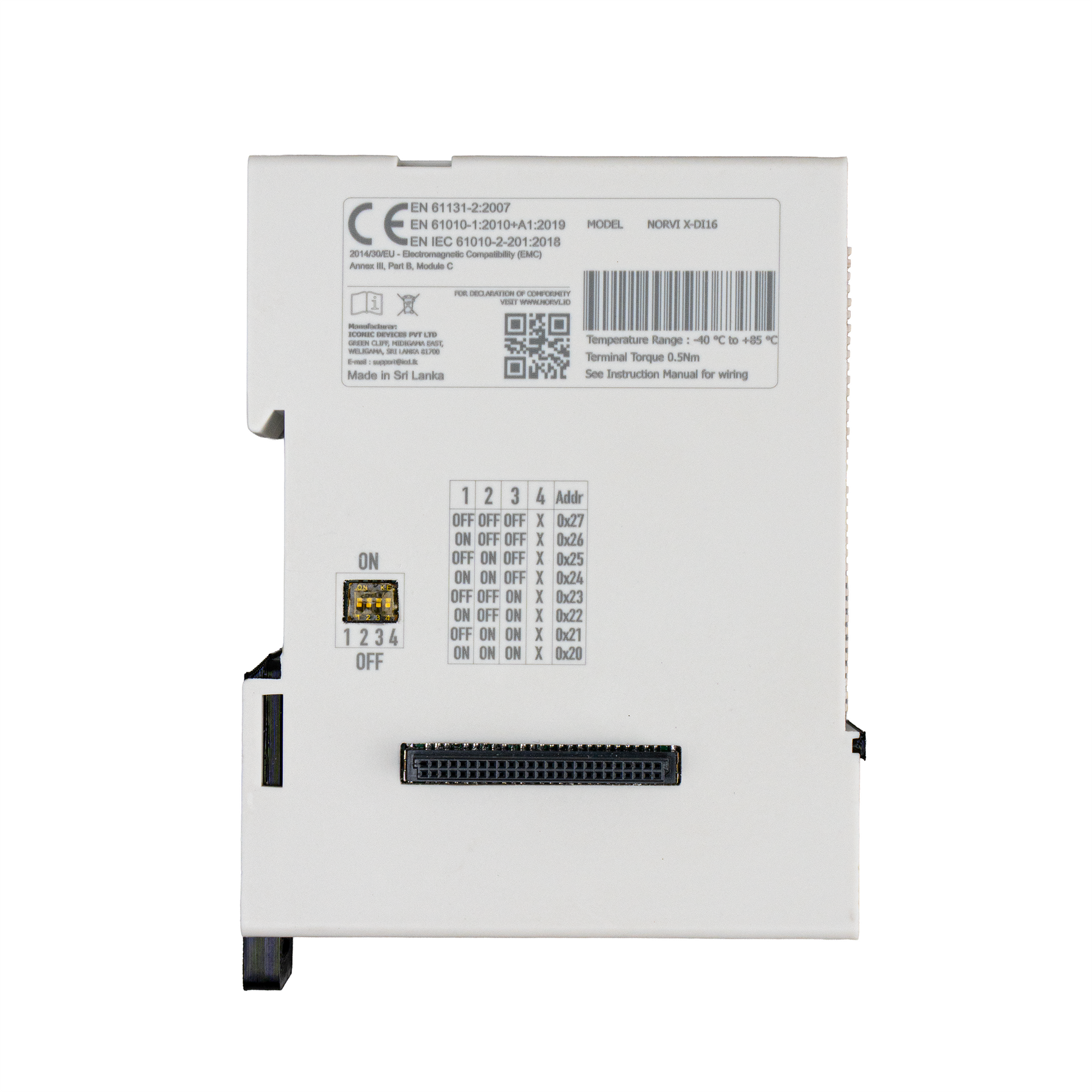

- PCA9555 I²C port expander with 8 selectable addresses
- Up to 8 DI6 modules per controller (128 inputs max)
- Built-in over-voltage and reverse-polarity protection

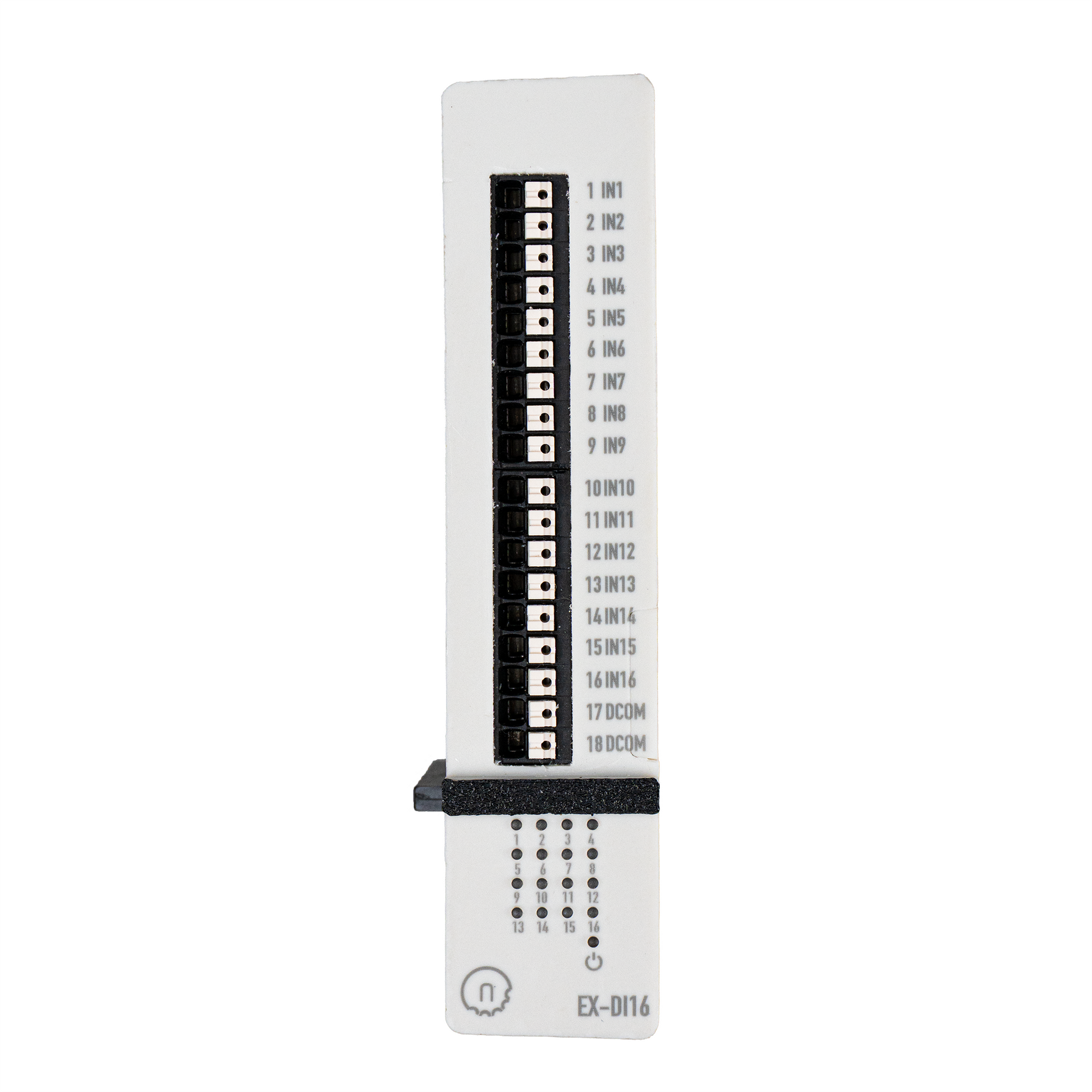

- Status LED indicators for each input channel

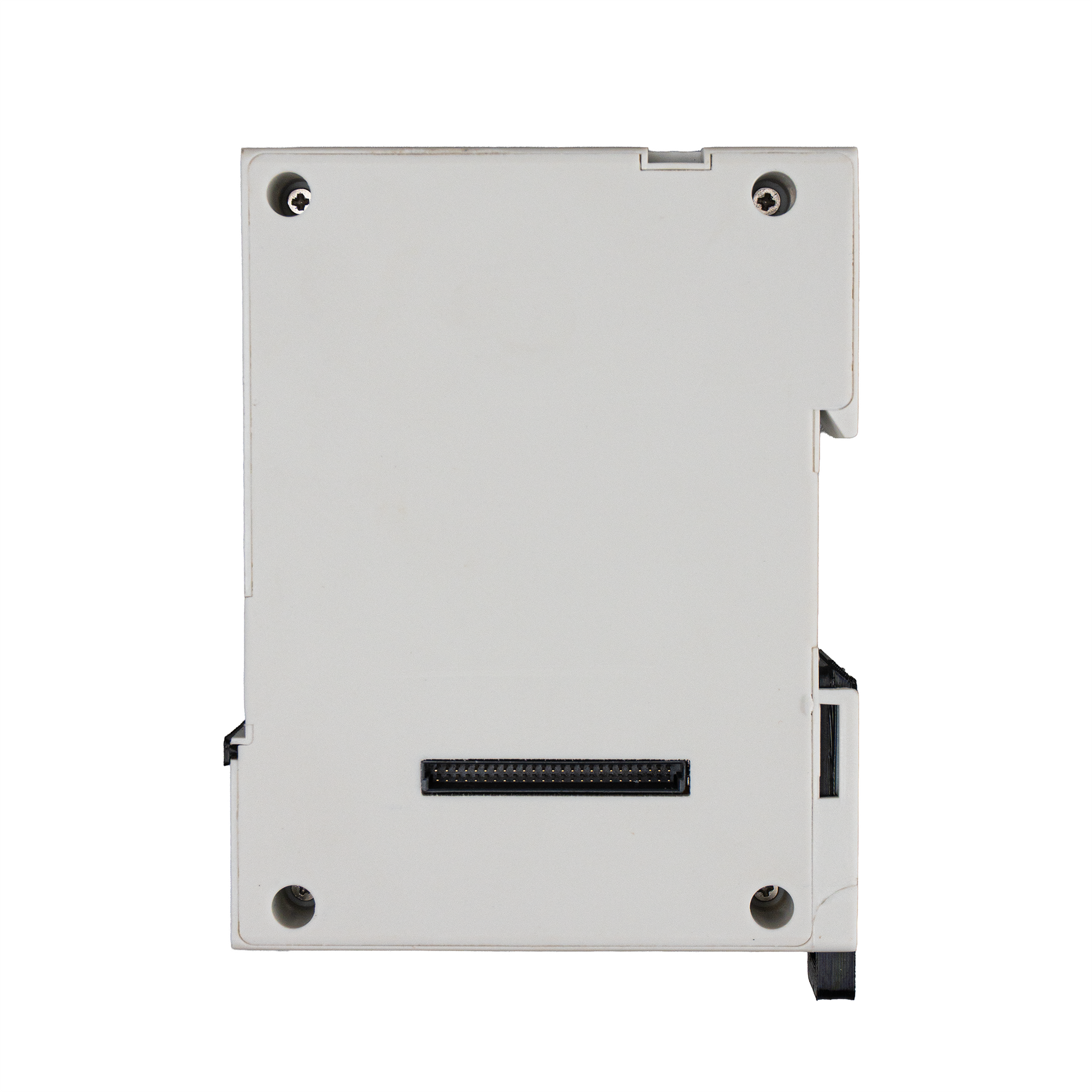

- Plug-and-play connection to NORVI X CPU module via expansion bus
- DIN-rail mountable industrial enclosure
Couldn't load pickup availability
Visit the product documentation for datasheets, user guides and example programs
Applications
- High-density machine and process signal monitoring
- Large-scale PLC and control system I/O expansion
- Universal NPN/PNP sensor interfacing
- High-speed pulse and encoder signal capture
